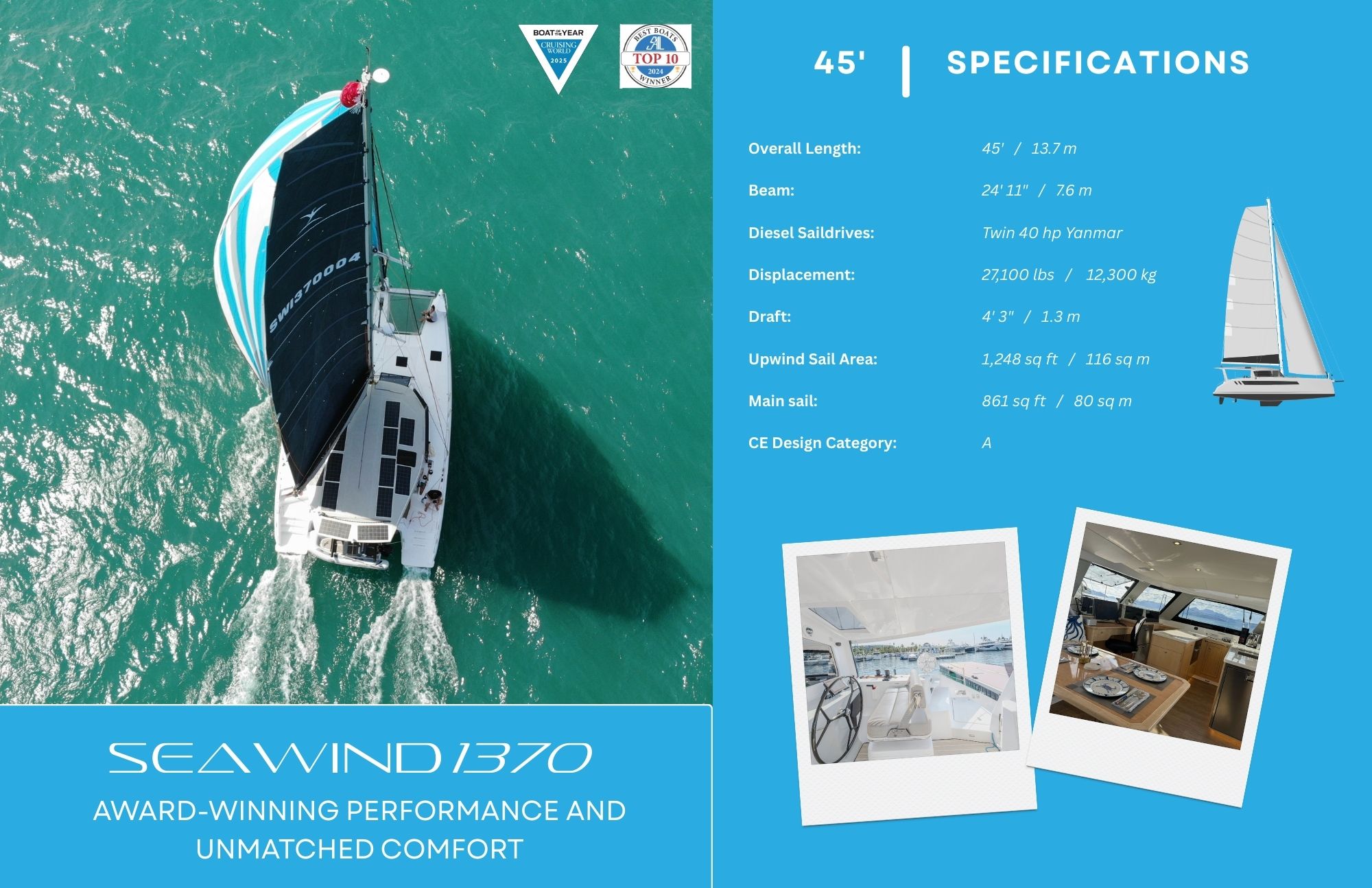

Detail Specifications’ Seawind 1370

DISCLAIMER : The specifications below may change at the discretion of Seawind Catamarans.

General

The overall finish of the Seawind 1370 will be consistent with a luxury world-standard yacht of this size and type.  Only very high quality equipment is used throughout. The overall aim is for a level of construction, workmanship, equipment, fitout and style that surpasses any other comparable catamaran available in the market at this size range.

EXTERIOR / LAMINATE

• Finish:  Full female moulded hulls & decks, exterior gelcoat finish with moulded-in non-slip surface on deck areas.
  Laminates:
  • Hull Laminate: Vinyl Ester (Modified epoxy) resin infusion laminate of the entire hull laminate. PVC Foam cored construction using a hybrid of e-glass and carbon fiber reinforcement.
  • Deck Laminate: Vinyl Ester (Modified epoxy) resin infusion laminate of the entire deck laminate. PVC foam cored construction using a hybrid of e-glass and carbon fiber reinforcement.
  • Other Components: all other components shall be made using Polyester resin, vacuum formed or infused with a hybrid of e-glass and carbon fiber reinforcement over PVC foam cores.
  • Laminate specifications are to Australian survey compliant and international standards including European CE certification.

MAST/BOOM/SAILS

• Clear anodised aluminium mast and boom. Double Spreader, fractional rig.
• Standing Rigging: All fitted with turnbuckles and T-ball end fittings:
  • Forestay 1/2″ (12mm) 1 x 19 Dyform wire.
  • Sidestays 1/2″ (12mm) 1 x 19 Dyform wire
  • Diamonds 5/16 (8mm) 1 x 19 Dyform wire.
• Halyards:
  • Main halyard:  12 mm Spectra rope : Heavy duty shackle.
  • Genoa halyard:  10 mm Spectra rope. Heavy duty shackle.
  • Topping lift:  10 mm double braid, Heavy duty shackle.
  • Spinnaker Halyard:  12mm double braid with snap-shackle spliced to end.
  • Screecher Halyard: 12mm Spectra rope : 2:1 purchase with heavy duty block
• Boom outhaul.
• 3 x mainsail single line reefing fitted
• Main halyard, topping lift and reefing lines to be lead back to cockpit through turning blocks and rope clutches.
• Fully battened mainsail – Fibreglass sail battens.
• Mast adjustable ball bearing batten cars.
• Cruising mainsail cover with integrated lazy jack system.
• Self-tacking headsail. Curved headsail traveller track with end stops. Control sheet to cockpit.
• Headsail furler.

DECK EQUIPMENT

• Flush mounted deck hatches (8 in total)
  • 4 x Forward Hatches 470mm x 470mm
  • 2 x Mid cabin side hatches 507mm x 377mm
  • 1 x Port Bathroom window hatch 507mm x 377mm
  • 1 x Aft Cabin window hatch  507mm x 377mm
• Fibreglass Deck Hatches:
  • Cockpit storage hatches x1
  • Forward anchor & storage hatches x 6
  • Cockpit Icebox & hatch x1
• 6 x Docking cleats. Each side: bow, stern & amidships.
• 1 x Heavy duty mooring cleat on forward walkway.
• Ventilation: 2 x forward cabin hatch vents.
• Mast base turning blocks. Main halyard, reefs & sail controls led to cockpit.
• 15 x Rope clutches.
• Manual Sheet winches: 4 x 50ST – 2 speed self tailing.
• Stanchions/Rails: High quality stanchions, bow rails and stern rails with 3 life-lines.  700mm high surpassing international CE requirements.
• 2 x transom access gates with pelican hook releases.
• 2 x side access gates with pelican hook releases.
• Aft swim ladder: folding stainless aft swim ladder.

FORWARD BEAM, CATWALK AND TRAMPOLINES

AFT BEAM AND DECK

• Moulded fibreglass Targa Bar with curved mainsheet track.
• Offshore standard dinghy davits mounted to aft beam with 300kg working load.

RUDDER SYSTEM

• Twin, protected helm stations (dual)
• 2 X 39” composite steering wheels.
• Cable and tie rod linkage with both wheels independently linked to steering system. – system offers back-up redundancy.

INTERIOR FINISH

• Luxury finish interior.
• Sides and cabin top lined with textured fabric, simulated timber laminates or moulded gelcoat.
• Floors: Common area soles simulated timber.

SALOON

• Timber dining table: Lowers to create coffee table or double bed.
• Upholstered settee with day lounge
• Cocktail cabinet/storage under day lounge
• Timber chart table
• Forward opening windows in 10mm toughened glass in marine anodized aluminum frame. Side windows in 10mm toughened glass.
• Saloon / cockpit doors: Moulded gelcoat tri-fold doors. Complete with folding mechanism for folding into Targa walkway.

GALLEY

• Spacious galley with co-ordinated Polystone counter surfaces, timber accents.
• Three (3) burner LPG stove. Stainless steel pot holders. Flame failure device to shut off LPG immediately in event of flame going out.
• Built-in wall oven – LPG with electronic ignition.
• Double bowl stainless steel sink.
• Pressure hot & cold fresh water system. Single lever mixing tap.
• Refrigerator : Front opening upright fridge 130 litres.
• Under bench storage with timber door fronts & cutlery drawers.
• LPG solenoid control in galley.
• Full size 2 draw freezer

SLEEPING CABINS

• Timber doors on all private cabins.
• Port owners cabin: queen sized bed (2050mm x 1540mm)
• Starboard fwd cabin: queen sized bed (2050mm x 1540mm)
• Aft Starboard cabin : double bed (1950mm x 1420mm)
• Mattresses to be 125mm ( 5” ) quilted foam upholstered.
• Cabins lined.
• Recessed 24volt lighting.
• Storage/Cupboards.
• 1x  USB outlet in each cabin

PORT HEAD

• Timber lockable door.

• Electric toilet. Discharge via holding tank.

• Holding tanks built in. Discharge Pump out by shore station or directly overboard through 120L holding tank.
• Pipes, skin fittings and sea-cocks are easily accessible and to meet survey requirements.
• Vanity basin with pressure hot & cold water.
• Wall mounted shower head & mixer tap.
• Electric shower bilge pump with direct overboard discharge.
• Large quantity cupboards / shelves to very high quality.
• Toilet roll holder, towel rack & mirror mounted.

STARBOARD HEAD

• Timber lockable door.
• Electric toilet. Discharge via 100l holding tank.
• Holding tank built in. Discharge Pump out by shore station or directly overboard.
• Pipes, skin fittings and seacocks to be easily accessible and to meet survey requirements.
• Vanity basin with pressure hot & cold water. Shower head and basin mixer tap with electric shower bilge pump.
• Cupboard/shelves to very high quality.
• Toilet roll holder, towel rack & mirror mounted.

LIGHTING / ELECTRICAL SYSTEM

• High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display.
• Marine grade tinned electrical wiring with extensive use of heat sealed connectors..
• 4 Batteries in total comprising of: 2 x 12v 200Ah Deep Cycle Gel Batteries to give total 200Ah at 24v. 2 x AGM Start batteries
• 500amp heavy duty isolation switch.
• Battery Monitor
• 24V lighting : Numerous 24V LED interior lamps and courtesy lights throughout including recessed lights in cockpit. Dome lights in cockpit. (All lights are LED)
• 5 x 24V USB Outlets.
• Survey approved LED navigation lights. Port & Starboard mounted on bow rails.
• Deck floodlight mounted on mast.
• Mast head anchor / riding light.
• 2x 160w Solar Panels and 40amp regulator.

PLUMBING /FRESH WATER TANKS

• Pressure hot & cold water system. Hot water storage system (40 litre / 8.8 gallons). Hot & cold water to galley and both bathrooms.
• Galley fresh water tap is lever type.
• Fresh water tank: 600 litres (155 gallons). Remote deck filler.
• Electric fresh water pump.
• Electric bilge pumps (2) with controls integral with master battery switch panel. Float Switches (2).
• Manual bilge pumps (2) in each hull.
• Marelon through-hull fittings to CE international standard.
• Electric toilets in each head.
• Port and Starboard bathroom with separate shower stall.
• Electric sump pump for shower drain.
• 2 x LPG bottles – 4.5kg galvanised.
• Fresh water tank gauge.

ENGINES

ANCHORING / MOORING

• Electric anchor winch with chain & gypsy. Located under locker to give clean deck. Primary anchor is 55 lb Delta type with 55 mtrs x 10mm short link galvanised chain.
• Primary anchor is stored in a specially designed anchor roller under the forward beam.
• Anchor winch has wired remote at the winch plus a remote up / down control at the helm station.
• 4 x PVC Inflatable Fenders
• 4 x Mooring lines (each 15 metres x 14mm).

ANTIFOULING / STRIPING

• Epoxy barrier coat plus 2 coats of high quality Altex antifouling bottom paint.
• Seawind 1370 decals on each hull and stern.
