- Aluminium forebeam.
- Pelican striker and adjustable cable.
- 1 x Mooring rollers above foredeck.
- 2 x Anchor roller under deck. Permanent stowage position for Plough (Delta type) anchor.
- Catwalk in foam-sandwich fibreglass.
- Plastic coated open weave trampolines.

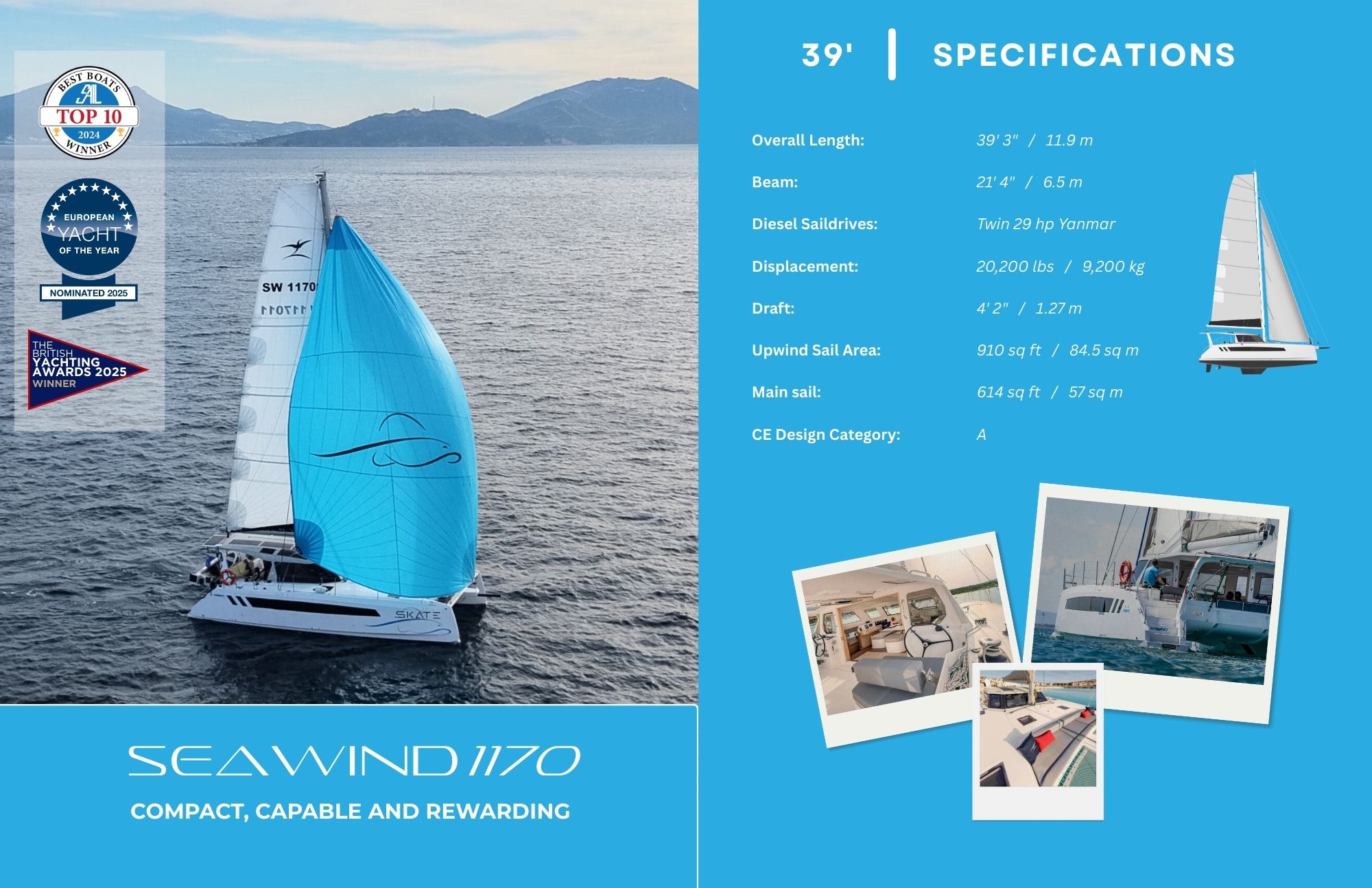

Seawind 1170 (39'3" / 11.9m)
Standard Specfications and Equipment
General
The overall finish of the Seawind 1170 will be consistent with a luxury world-standard yacht of this size and type. Only very high quality equipment is used throughout.
EXTERIOR / LAMINATE
- Finish: Full female moulded hulls & decks, exterior gelcoat finish with moulded-in non-slip surface on deck areas.
- Hull Laminate: Infused Vinyl Ester (Modified epoxy) resin laminate of the entire hull laminate. Infused Polyester resin elsewhere. Laminate specifications are certified to CE standards.
MAST/BOOM/SAILS
- Clear anodised aluminium mast and boom. Single Spreader, 7/8 rig.
- Standing Rigging – Forestay 3/8 (10mm) 1 x 19 Dyform wire.
- Sidestays 3/8 (10mm) 1 x 19 Dyform wire
- Diamonds 5/16 (8mm) 1 x 19 Dyform wire.
- Halyards – Main halyard: 12 mm Spectra rope : Heavy duty shackle.
- Jib halyard: 8 mm Spectra rope. Heavy duty shackle.
- Topping lift: 10 mm rope, Heavy duty shackle.
- Spinnaker Halyard: 10mm rope with snap-shackle spliced to end.
- Boom outhaul.
- 2 x mainsail single line reefing fitted.
- Main halyard & reefing lines to be led back to cockpit through turning blocks and rope clutches.
- Fully battened dacron mainsail. Triple stitched reinforced construction. Leach adjustable batten end caps. Fibreglass sail battens + batten cars.
- Cruising mainsail cover with integrated lazy jack system.
- Self-tacking dacron headsail with furler. Curved headsail traveller track with end stops.
DECK EQUIPMENT
- Flush mounted hatches & portholes (12 in total)
- 4 x Forward deck hatches 470mm x 470mm
- 2 x Mid cabin deck hatches 470mm x 470mm
- 1 x Port mid cabin window hatch 507mm x 377mm
- 1 x Port bathroom window hatch 507mm x 377mm
- 1 x Port bathroom rear step portlight 600mm x 150mm
- 1 x Galley window hatch 507mm x 377mm
- 1 x Aft cabin window hatch 507mm x 377mm
- 1 x Aft cabin rear step portlight
- Fibreglass Deck Hatches:Forward anchor & storage hatches x 5
- 6 x Docking cleats: Bow, mid & stern cleats on each hull.
- 1 x Heavy duty mooring cleat on forward walkway.
- Ventilation: 2 x forward cabin hatch vents.
- Mast base turning blocks.
- 12 x Rope clutches.
- Sheet winches :
- 1 x 45 – 2 speed self tailing at stbd helm
- 2 x 40 – 2 speed self tailing at port and stbd helm
- 1 x 40 – 2 speed self tailing at mast
- Stanchions/Rails: High quality stanchions, bow rails and stern rails with 3 life-lines. 700mm high for premium offshore safety – exceeding CE Category A requirements.
- 2 x Transom access gates with pelican hook releases.
- 2 x side access gates with pelican hook releases.
- Aft swim ladder: Telescoping stainless aft swim ladder with flat tread for comfort.
NAVIGATION/HELM
- Steering compass at port & stbd helms.
- GRP Helm seats with ice box under port side and storage plus gas locker under stb side.
- Primary Helm (port) raised upholstered helm seat with folding backrest
FORWARD BEAM, CATWALK AND TRAMPOLINES
AFT BEAM AND DECK
- Moulded fibreglass Targa Bar with curved mainsheet track.
- Lounge seating at aft beam.
- Full width hard top over cockpit.
- Windows over helms for sail visibility.
- Dinghy davits mounted from aft targa supports.
STEERING/RUDDER SYSTEM
- Twin raised helm stations (dual) with: 2 X 32” composite steering wheels.
- Both wheels independently linked to steering system. – System offers back-up redundancy.
- Carbon fibre cross bar – rudder linkage.
INTERIOR
- Lightweight, modern interior design.
- Synthetic timber flooring.
- Sides and cabin top lined with vinyl or moulded gelcoat.
SALOON
- Polished timber dining table: Lowers to create coffee table or double bed.
- Upholstered settee.
- Nav station and chart table
- 2 x Large forward opening windows providing significant ventilation.
- Saloon windows in toughened glass.
- Saloon / cockpit doors: Moulded gelcoat tri-fold doors. Complete with folding mechanism for folding into Cockpit roof
- Electric helm windows.
GALLEY
- Spacious galley with Polystone counter surfaces, timber accents.
- Twin burner LPG stove & oven. Stainless steel pot holders. Flame failure device to shut off LPG immediately in event of flame going out.
- Double bowl stainless steel sink.
- Pressure hot & cold fresh water system. Single lever mixing tap.
- Refrigerator: Front opening fridge
- Spacious freezer: 150 litre top loading.
- Under bench storage with polished timber door fronts & cutlery drawers.
- Pantry / crockery cupboard
- Inboard side of galley: Over-bench cupboard with timber polished timber finished fronts..
- Trash bin
- LPG solenoid control in galley.
SLEEPING CABINS
- Port Side Owners Cabin
- Stbd Forward and Stbd Aft Guest Cabins
- Timber doors on all private cabins.
- Port & Starboard fwd cabins : Each queen sized berth
- Aft Starboard cabin : Double berth
- Mattresses to be 150mm (6”) quilted foam upholstered.
- Cabins lined.
- 12 volt lighting.
- Storage/Cupboards.
- Simulated timber flooring.
PORT HEAD
- Polished timber lockable door.
- Manual toilet. Discharge via holding tank.
- Holding tanks built in. Discharge Pump out by shore station or directly overboard.
- 130L Waste tank
- Composite skin fittings and sea-cocks, to meet CE requirements and easily accessible
- Vanity basin with pressure hot & cold water.
- Separate shower stall with clear glass door. Wall mounted shower head & mixer tap.
- Electric shower bilge pump with direct overboard discharge.
- Large quantity cupboards / shelves to very high quality.
STARBOARD HEAD
- Timber lockable door.
- Manual toilet. Discharge via holding tank.
- Holding discharge via shore station pump out or via direct discharge.
- Pipes, skin fittings and seacocks to be easily accessible and to meet survey requirements.
- Vanity basin with pressure hot & cold water. Shower head and basin mixer tap with electric shower bilge pump.
- Cupboard/shelves to very high quality.
- Toilet roll holder, towel rack & mounted mirror.
LIGHTING / ELECTRICAL SYSTEM
- High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display.
- Marine grade tinned electrical wiring with extensive use of heat sealed connectors.
- Batteries x 3 comprising: 2 x 12v 200Ah Deep Cycle House Gel Batteries to give total 400Ah. 1 x AGM Start batteries
- 230amp heavy duty isolation switch.
- 12v lighting : Numerous 12v interior lamps and courtesy lights throughout.
- Red night lights in cockpit for night sailing
- 3 x USB outlets:
- Nav desk
- Port fwd cabin
- Stbd fwd cabin
- 1x 12v outlet:
- Port helm
- CE approved navigation lights.
- Deck / Steaming combination light
- Mast head anchor / riding light.
- 2x 160w flush mounted solar panels and 25amp regulator.
PLUMBING /FRESH WATER TANKS
- Pressure hot & cold water system. Hot water storage system ( 40 litre / 10.5 gallons) . Hot & cold water to galley and both bathrooms.
- Galley fresh water tap is lever type ( Flickmaster or similar).
- Fresh water tank: 600 litres (158 gallons). Remote deck filler.
- Electric fresh water pump.
- Electric bilge pumps (2) with controls integral with master battery switch panel. Float Switches (2).
- Manual bilge pumps (2) in each hull.
- Through-hull fittings to Australian & CE survey standard.
- Manual toilets in each head.
- Port bathroom with separate shower stall. Starboard bathroom with dual purpose faucet & shower.
- Electric sump pump for shower drain.
- 2 x LPG bottles – 4.5kg aluminium.
- Fresh water tank gauge.
ENGINES
- Pressure hot & cold water system to galley & both bathrooms with single lever mixer
- Hot water storage system (40 liter / 8.8 gallons) .
- Fresh water tank: 500 litres (132 gallons). Remote deck filler.
- Electric fresh water pump and accumulator/surge tank.
- Fresh water tank gauge.
- Electric bilge pumps (2) with controls integral with master battery switch panel.
- Float Switches with high level alarms (2).
- Manual bilge pumps (2) in each hull.
- Manual toilets in each head.
- Port bathroom with separate shower stall.
- Starboard bathroom with dual purpose faucet & shower.
- Electric sump pump for shower drain.
- 2 x LPG bottles – 4.5kg galvanised.
ANCHORING / MOORING
- Electric anchor winch with chain, located in foredeck locker to give a clean deck.
- Primary anchor is 45 lb Delta anchor type with 55m x 8mm short link galvanised chain.
- Primary anchor is stored in a specially designed anchor roller under the catwalk.
- Anchor winch has up switch at the winch plus a remote up / down control at the helm station.
- 3 x PVC Inflatable Fenders
- 4 x Mooring lines (each 15 metres x 14mm).
ANTIFOULING / STRIPING
- Epoxy barrier coat plus 2 coats of high quality antifouling bottom paint.
- Seawind 1170 decals on each hull and stern.
