The bulk of the electrical installation is mounted on the aft face of the main bulkhead, running across the full width of th saloon area. This is done to keep the weight centralised and fwd on the boat.
Under the nav desk, there is a removal panel allowing service access to equipmnet per the below:
In the image above is boat specific and does not reflect standard base boat equipment.

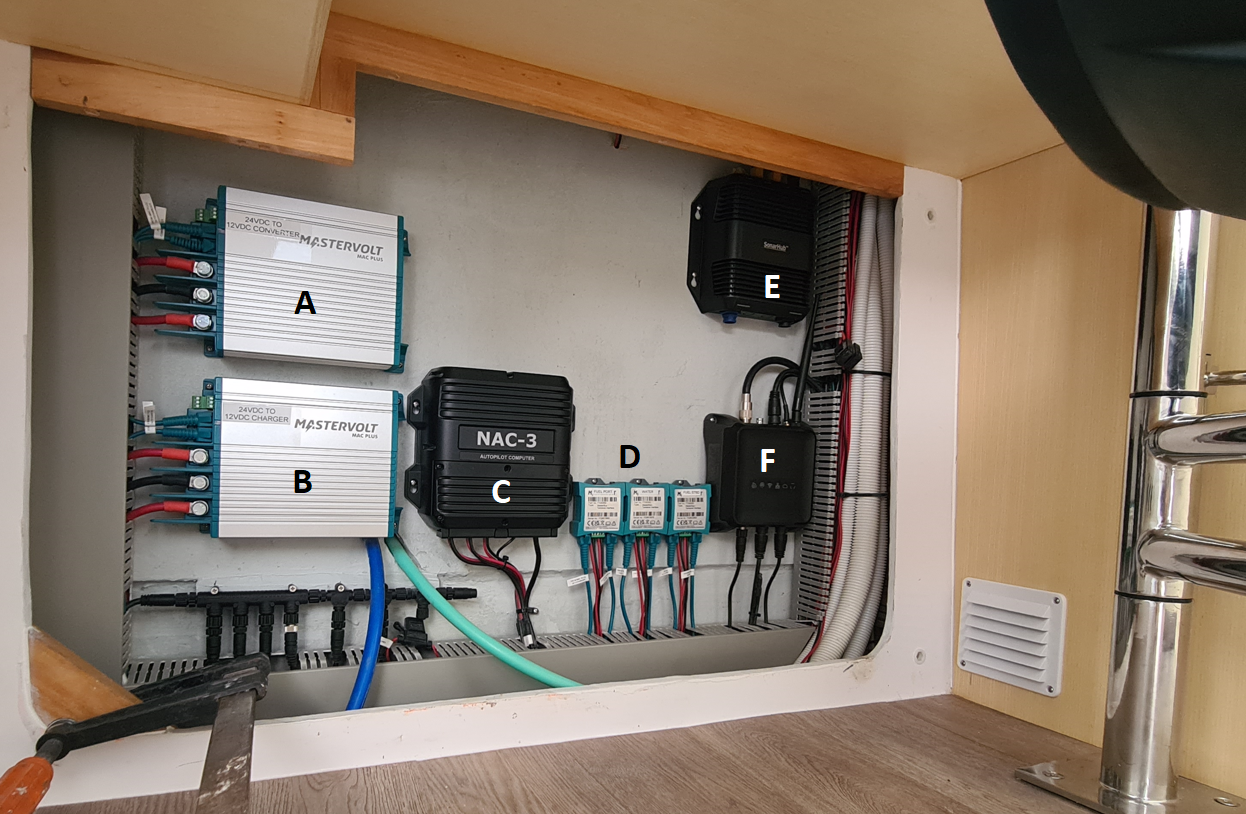

In the above you can see:
A: Mastervolt DC to DC Unit (converting 24v house Lithium to run 12v circuits such as VHF & NMEA 2000 network)
B: Mastervolt DC to DC Unit (converting & charging 12v start batteries from 24v house lithium).
C: B&G NAC-3 Autopilot Computer
D: Mastervolt Tank Sender unit for 1 x water & 2 x fuel tanks
E: B&G Sonar Hub (sender module)
F: Vesper Cortex VHF / AIS Unit
